Ford Small Block (289,300,302,351W,351C) to V6 6R80/10R80

Struggling to find an affordable V8 6R80, or are they too expensive for your build? Here's a cost-effective solution—use the Ecoboost V6 Ford transmission instead!

The V6 transmissions are more common and offer excellent aftermarket support. While the V6 and V8 cases share many similarities, there are two key differences. First, the bellhousing shape is different. More importantly, the rear output bearing differs: the V6 features a heavy-duty ball bearing, while the V8 uses a roller bearing. The ball bearing in the V6 provides better support, as the Ecoboost V6 produces more torque at lower RPMs compared to the Modular V8. Aside from this, the 6R80 and 10R80 transmissions are essentially the same between V6 and V8 versions.

Note: The 6R80 and 10R80 have different torque converter spacing, so be sure to order the correct kit for your setup.

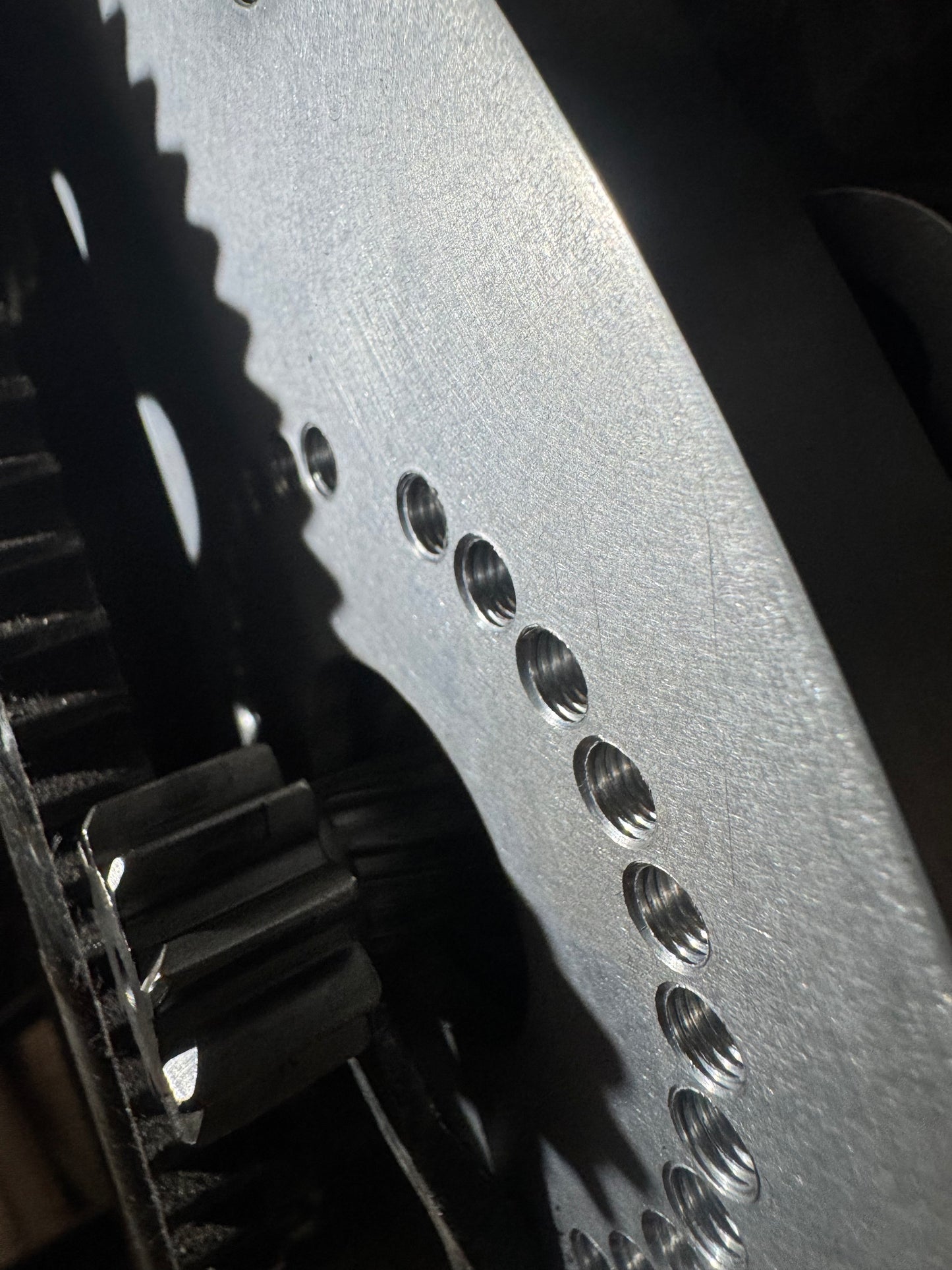

Additionally, this is the latest version of our adapter plate, now just 0.50" thick! This provides improved clearance, reduces the chances of firewall interference, and eliminates the need for modifications to your bellhousing or engine. The adapter also includes 11 possible starter clocking positions to help avoid any obstructions in your engine bay.

These Kits are designed to work with the 2.7, 3.0, 3.5 & 3.7 Ford V6 "Ecoboost" transmissions found in the F150, Mustang and Other larger Ford Vehicles. This kit retains the factory torque converter with the 11.4" bolt circle pattern so it will work with your factory flexplate.(164 tooth 14.25" DIA) This means no guessing on your balance no custom converter spacer just off the shelf parts to make any repair easier.

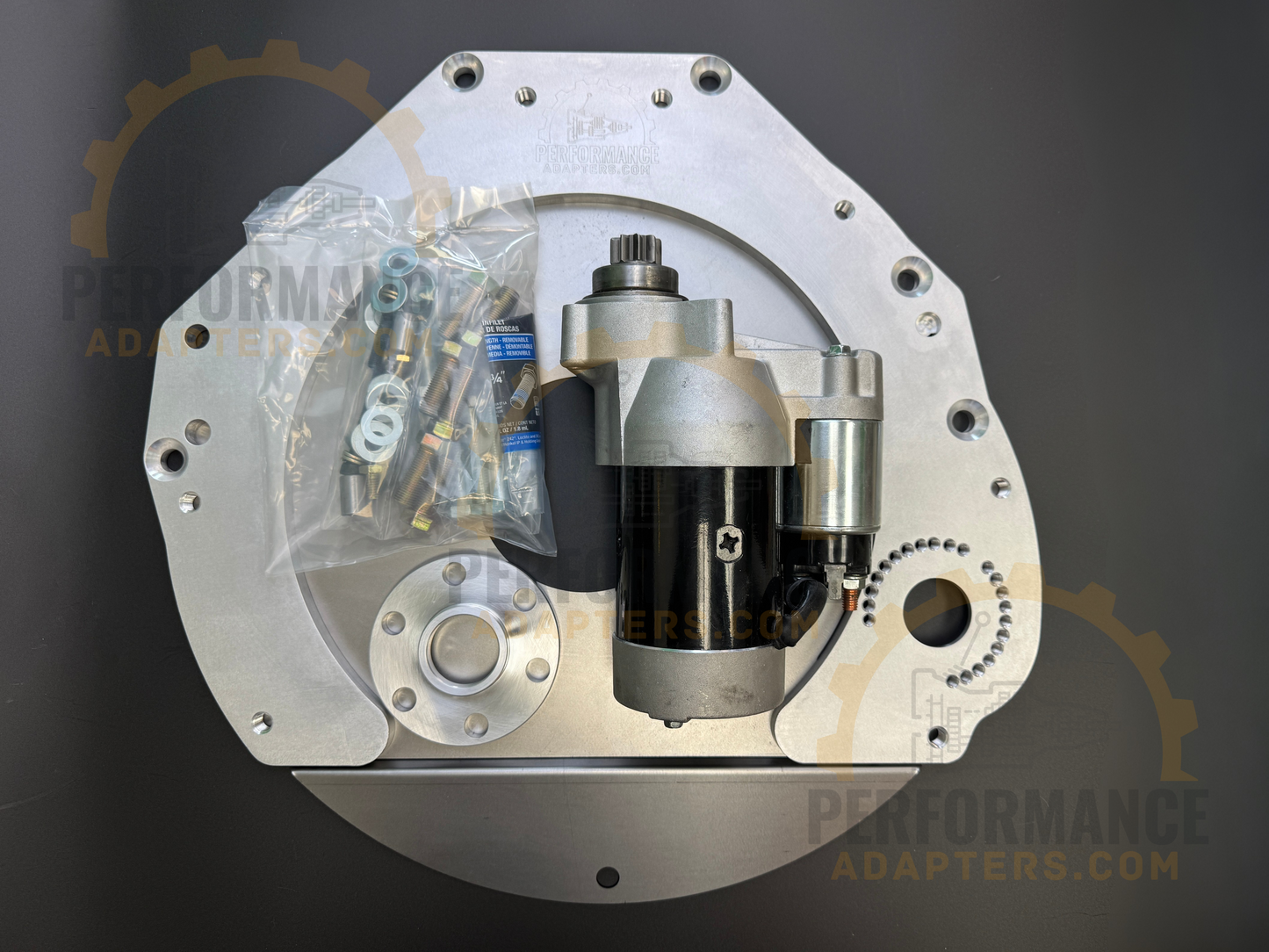

Kit Components:
1ea - Adapter Plate
1ea - Crank Spacer
2ea - Dowel Pins
1ea - Dust/Inspection Cover
1ea - Block Plate
1ea - High Torque Mini Starter
1ea - Hardware Kit

Performance Adapters is not responsible for return shipping. Additional return information can be found in our policy pages. If you have any additional questions please contact us call, text or email.
