PACH201: Chevrolet S10 T5 (1984 to early 1993) to most 1955 & up Chevy/GM 3 & 4-speed Bellhousing Adapter Kit

Chevrolet S10 T5 (1984 to early 1993) to most 1955 & up Chevy/GM 3 & 4-speed Bellhousing Adapter Kit

Materials Included:
(1) Adapter plate
(4) SHCS 1/2-13 x 2

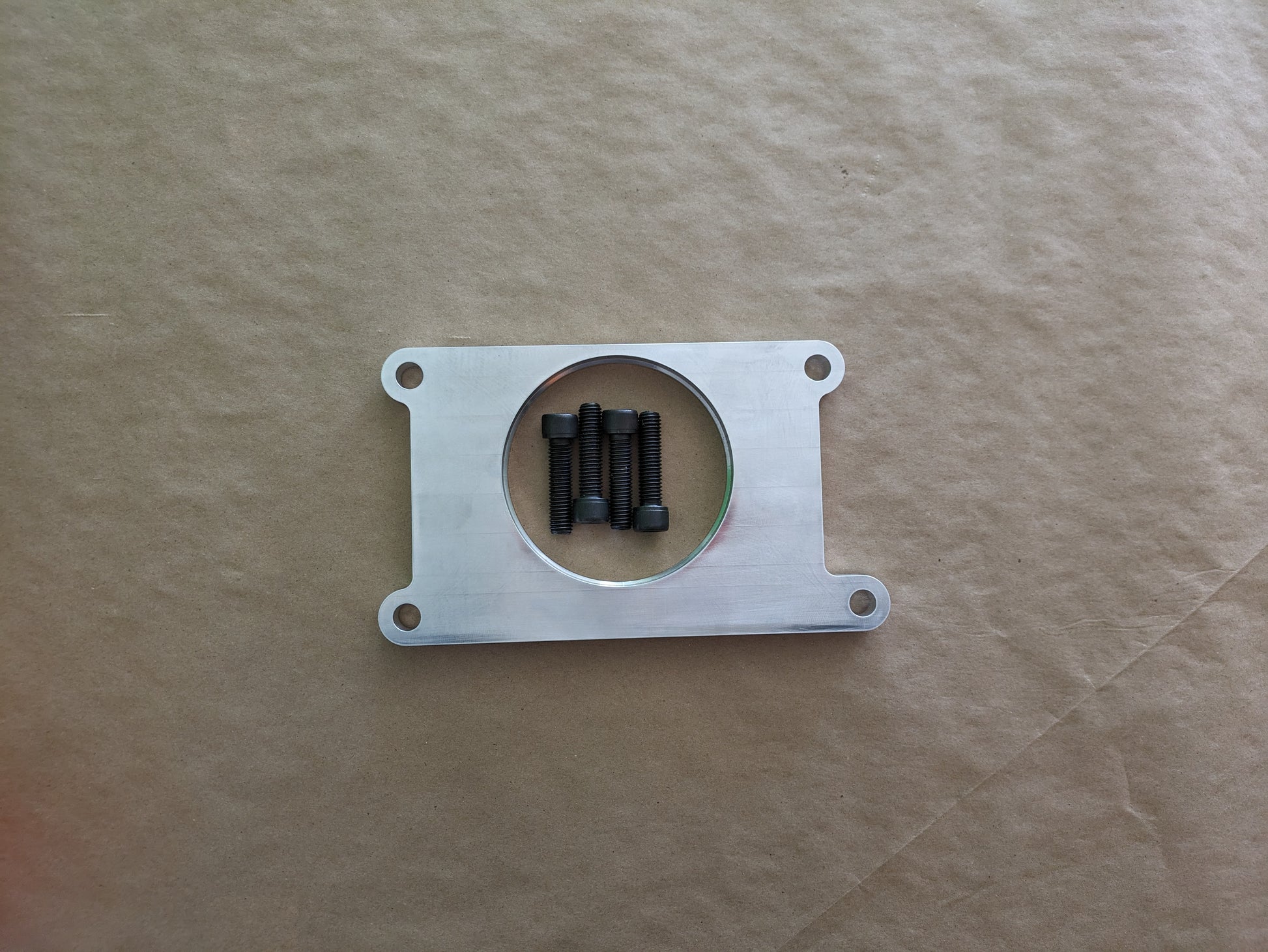

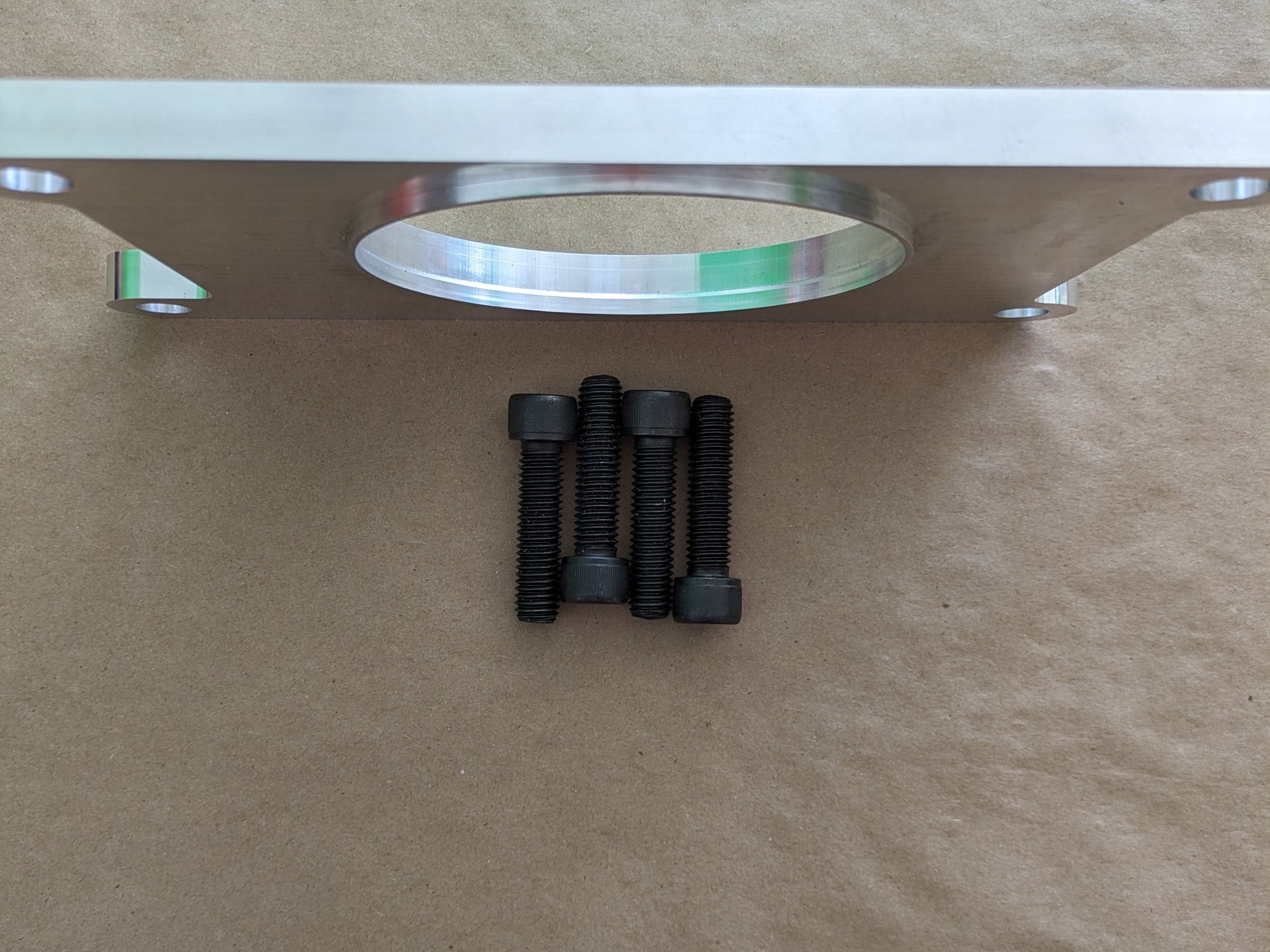

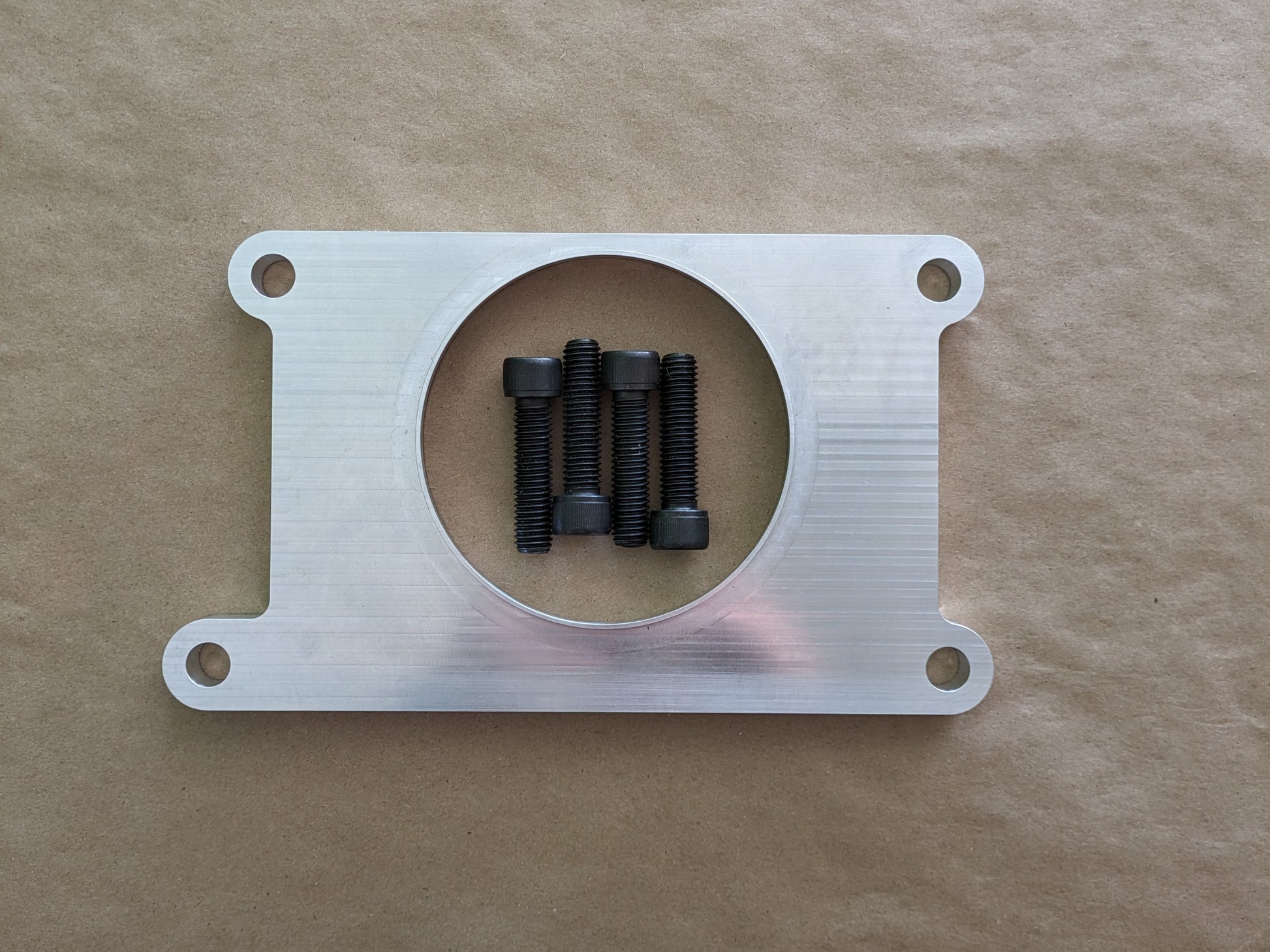

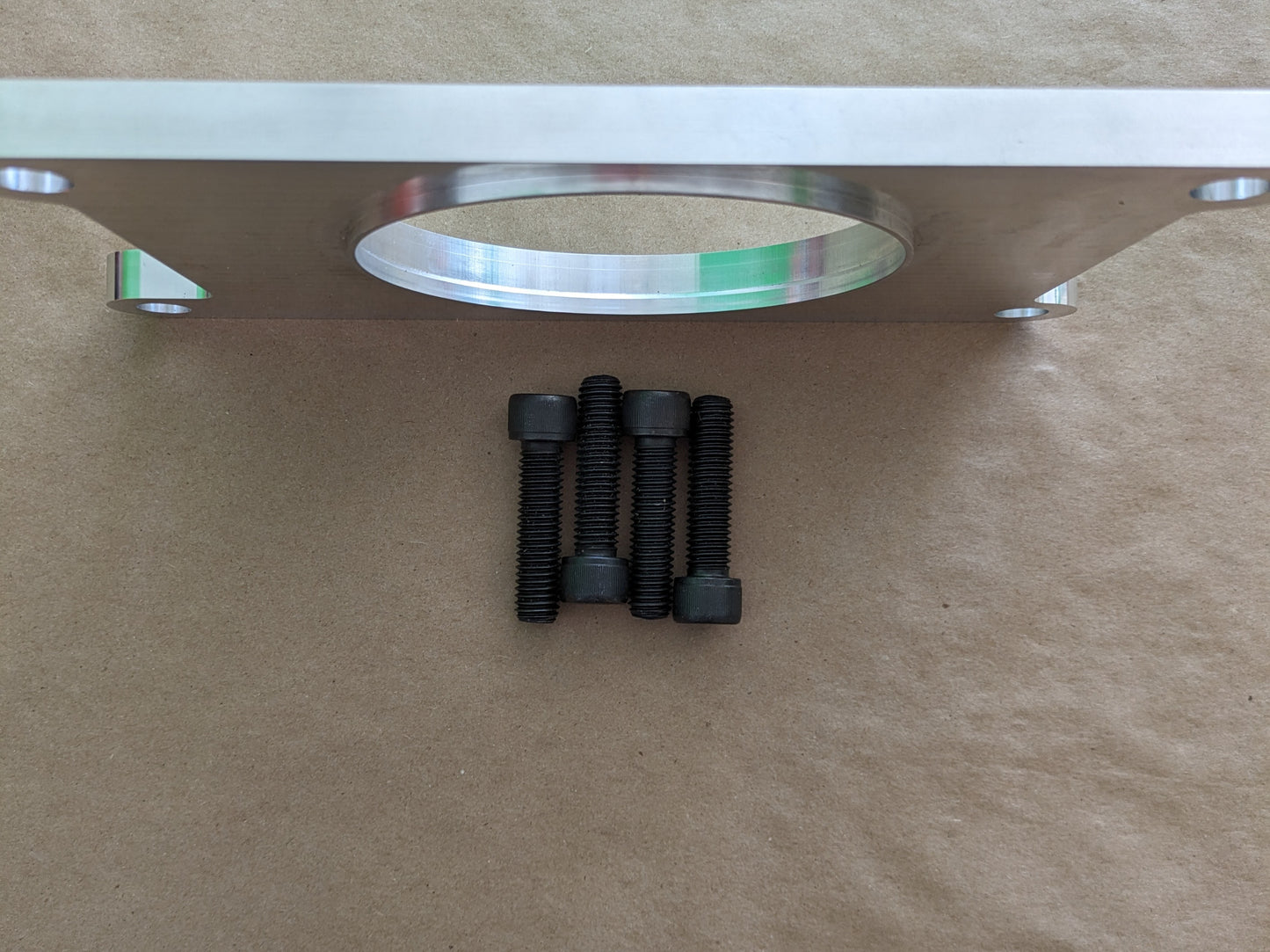

This BELLHOUSING ADAPTER PLATE allows you to bolt a 1984 thru early 1993 S10 or Astro T5 5-speed Transmission onto most stock Chevy 3 & 4-speed Bellhousings without shortening the input shaft. Our spacer is made of Billet 6061 aluminum. Interpolation machined on both sides maintains the centerline of the transmission and the bellhousing.

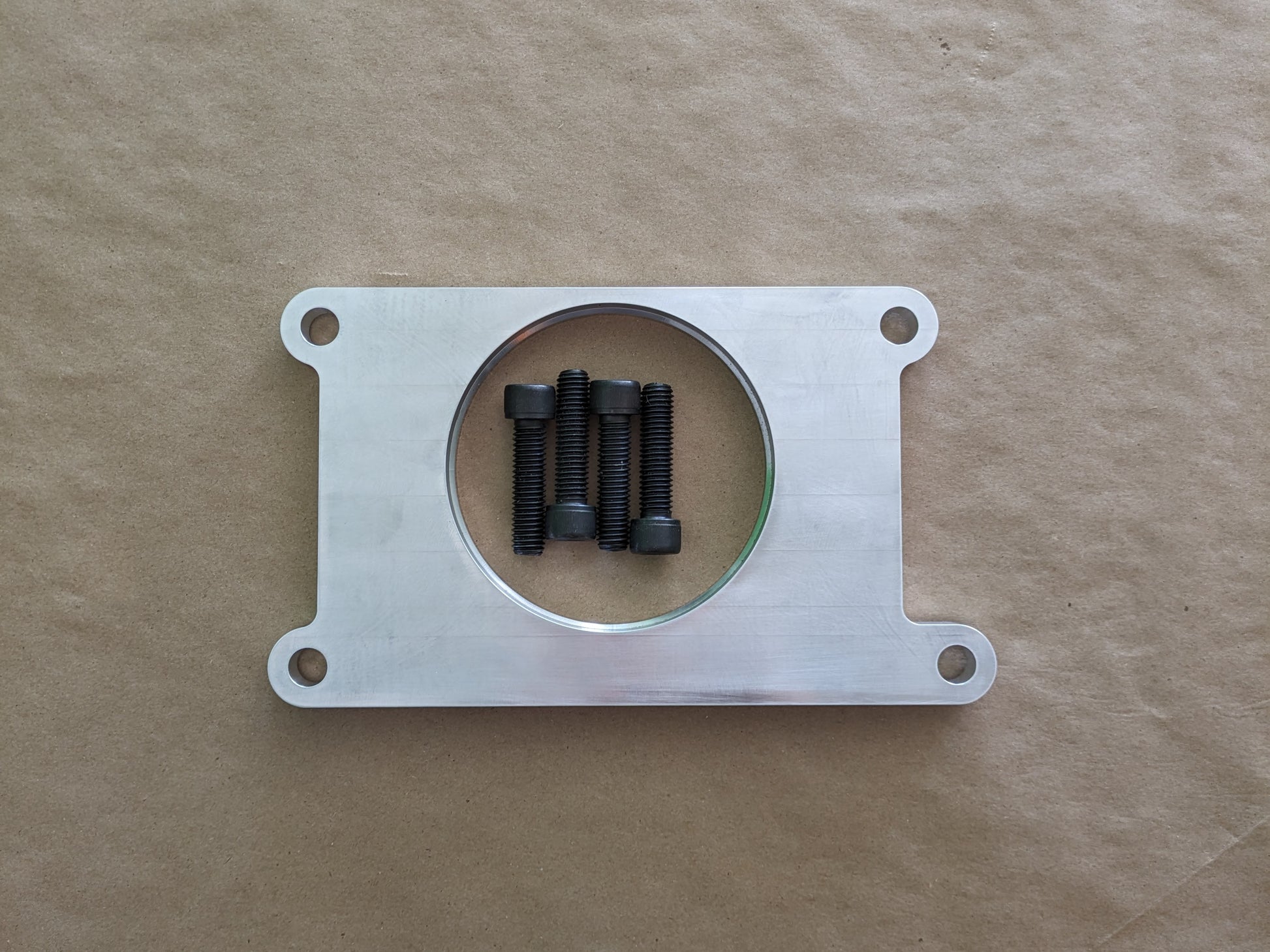

In addition, this plate will also work with the newer TKX transmissions. You will have to check input shaft length as they are made with several options. To work will need to be approximately 6.96" in length.

This kit retains the stock Chevy Flywheel, pressure plate, throw-out bearing, starter, and pilot bushing. However, the clutch plate needs to be matched to the spline count of the transmission input shaft. The front of the bearing retainer will need to be shortened by 1/2 inch.

For any questions, please contact us for more information. These kits need to be built specifically to your individual needs.
